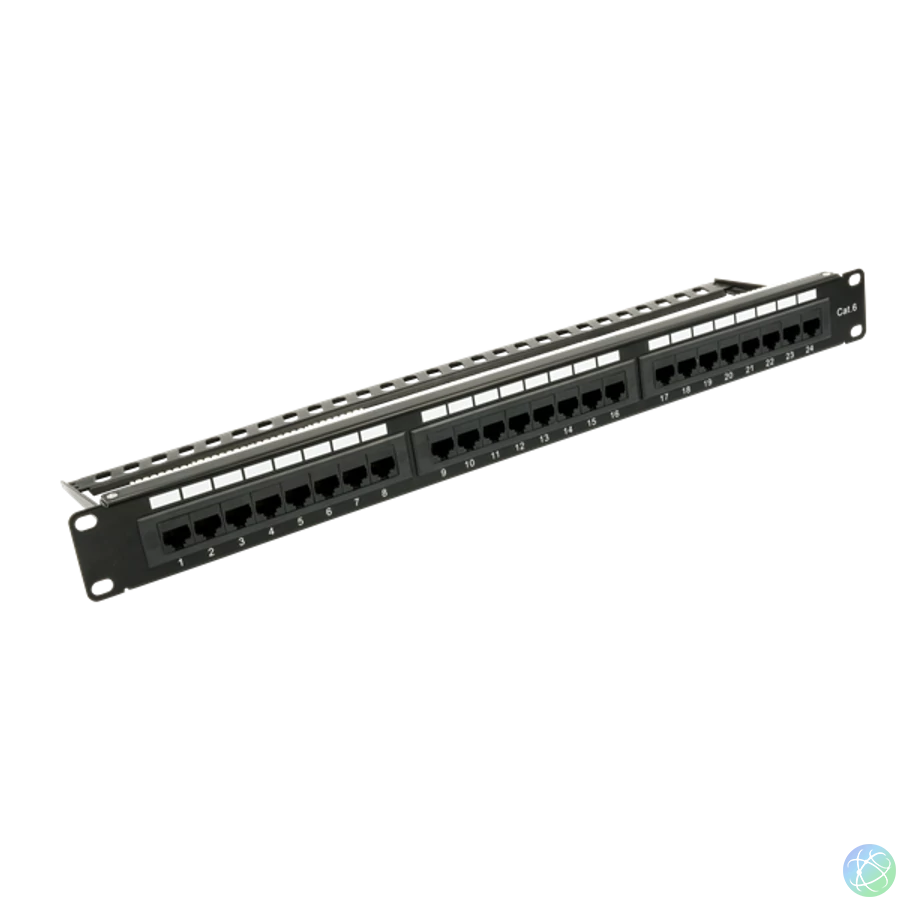

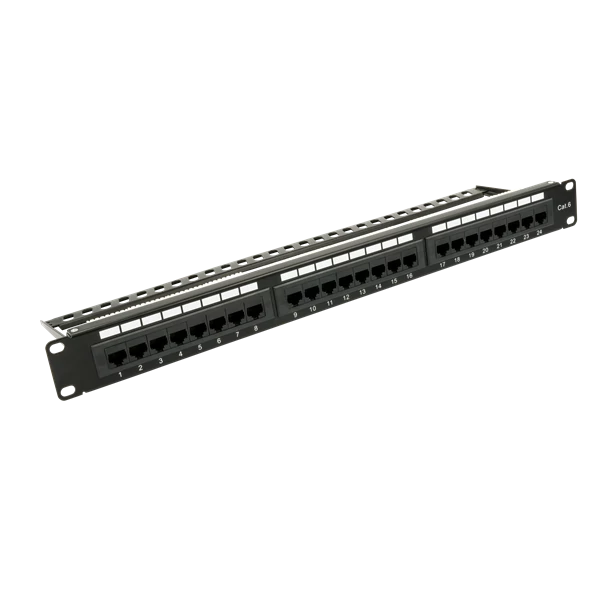

Termékleírás
|
Connector Type |
|
|
Category |
Cat 6 |
|
Shielding |
Unshielded |
|
Connector |
3*8 x RJ45 Jacks |
|
IDC Type |
Dual (110 & Krone) |
|
|
|
|
Material |
|
|
Housing Material |
PBT |
|
IDC Material |
PC Contact Jaw: Phosphor Bronze with Tin Plating, thickness = 0.8 mm |
|
Contact Material |
Phosphor Bronze with Nickel Plating, thickness = 0.45 mm |
|
Contact Surface Material |
Gold Plating, thickness = 1U (1μin or 0.0254µm) |
|
PCB Material |
FR-4, thickness = 1.6 mm |
|
Panel Frame |
Carbon Steel, Powder-Coated in Black, SPCC 1.5 mm |
|
|
|
|
Electrical Properties |
|
|
Voltage/Current Rating |
125 VAC RMS / 1.5 A |
|
Insulation Resistance |
≥ 1000 MΩ at 500 VDC |
|
Contact Resistance |
≤ 100 mΩ |
|
Dielectric Strength |
750 VAC RMS, 60Hz, 1 minute |
|
|
|
|
Mechanical Properties |
|
|
RJ45 Jack |
≥ 750 mating cycles |
|
IDC Lifespan |
≥ 250 termination cycles |
|
Wire Gauge |
AWG 22-26 |
|
Wiring Scheme |
T568A/T568B |
|
|
|
|
Environment |
|
|
Operating Temperature |
-25°C to 70°C |
|
Operating Humidity |
RH 10% to 90% (non-condensing) |
|
Storage Temperature |
-40°C to 85°C |
|
Storage Humidity |
RH 5% to 96% (non-condensing) |
|
|
|
|
General |
|
|
Installation |
Rack Mount, Standard 19-inch |
|
Dimension |
482.6 (19") x 44.45 (1U) x 121 mm (WxHxD) |
|
Net Weight |
670 g |
|
Gross Weight |
780 g |
Szavatosság: a jogszabályi előírások szerint.
Hasonló termékek
UGREEN CM483 USB-C-RJ45 hálózati adapter (szürke)
DIGITUS Cat.6 U/UTP LSZH 25m szürke patch kábel
GEMBIRD Patch kábel STP, CAT6a, LSZH, 20m, szürke

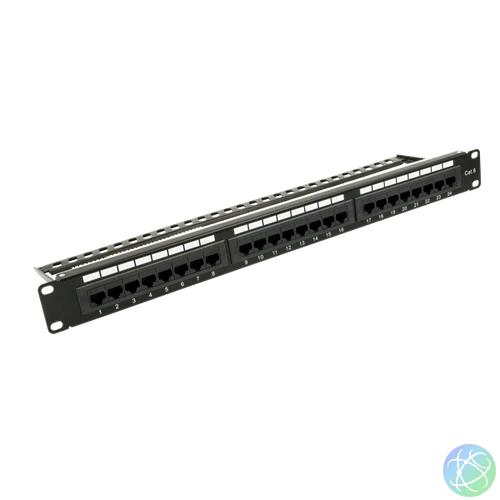

Walisec patch panel - PP-P6U2401 (24 port, Cat6, 1U, árnyékolatlan, fekete)
